Product Code :

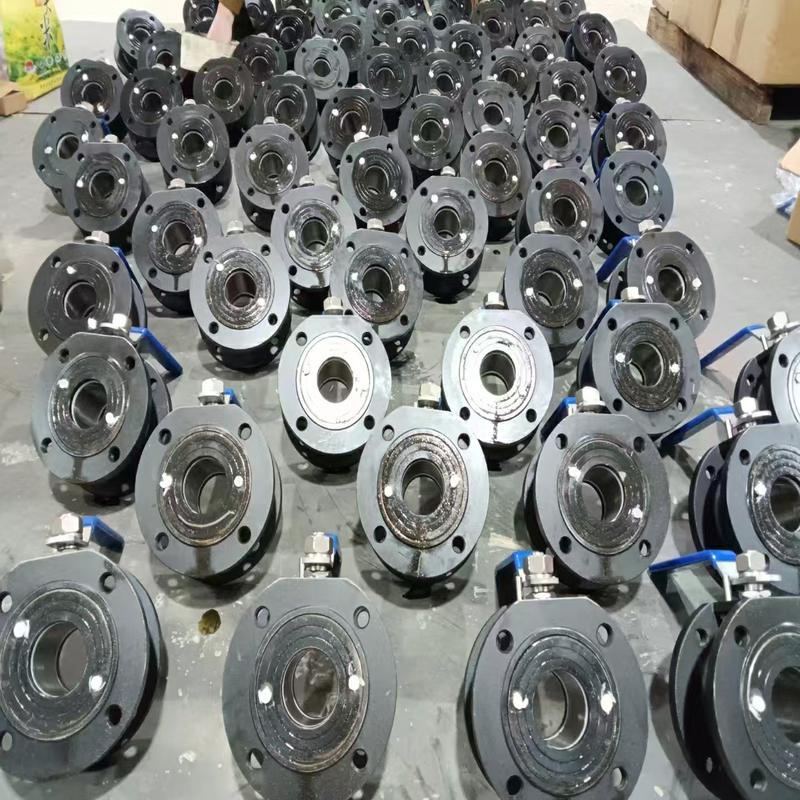

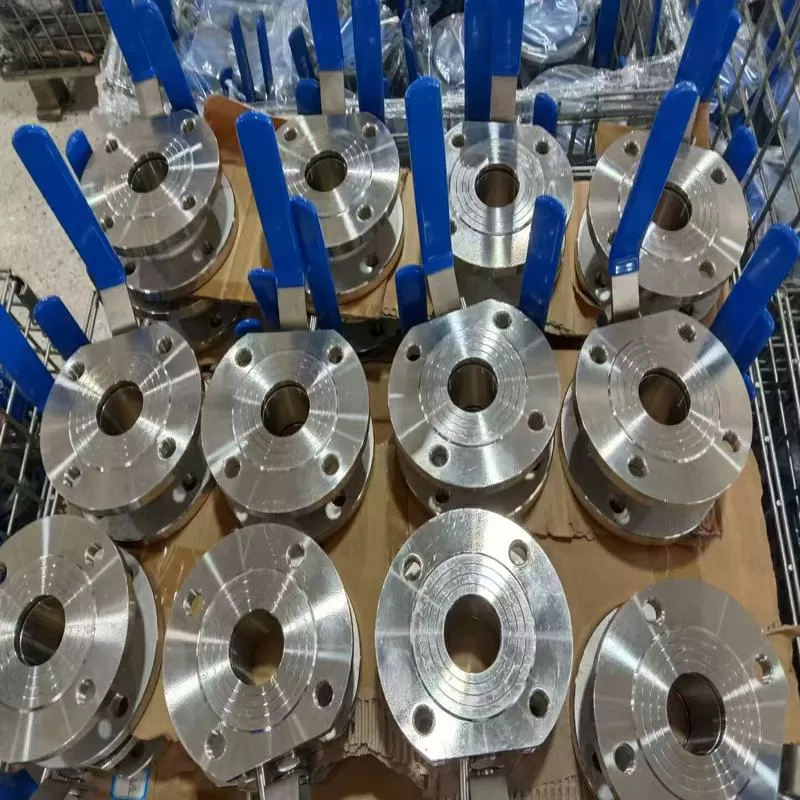

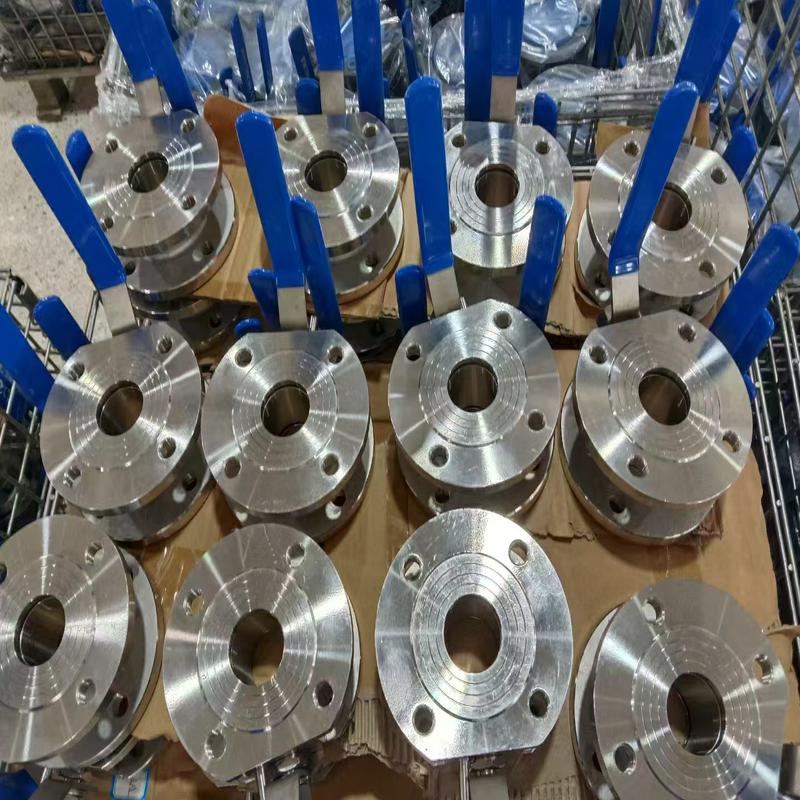

Q71F ultra-thin ball valve, the seat adopts elastic sealing structure, sealing reliable, easy to open and close. With fire-resistant structure, in case of fire, it can still be reliably operated and has good sealing. According to user needs, it can be equipped with anti-static structure. Set 90° switch with hole positioning plate, according to the need to lock, to prevent misoperation.
Features:
It has the advantages of short structure length, light weight, convenient installation and material saving.
Application scenario:
The ultra-thin ball valve Q71F is suitable for Class150, PN1.0 ~ 2.5MPa, the working temperature is 29 ~ 180℃(the sealing ring is reinforced polytetrafluoroethylene) or 29 ~ 300℃(the sealing ring is para-polystyrene) of various pipelines, used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
The clamp ball valve adopts ultra-thin flange connection, the clamp ball valve structure is short, small size, compact structure, the clamp ball valve is relatively light weight, space saving, easy installation, reliable sealing, light opening and closing, the ball valve has national standard, German standard structure, can be equipped with manual, pneumatic, electric drive, suitable for water, liquid, gas, oil and other pipelines, in various industries have been widely used.
Clamp ball valve product use:
Italian ultra-thin clamp ball valve is the introduction of technology and domestic design of the ultra-short flange distance ball valve, the shape of the ball core channel is rectangular, V-shaped and O-shaped. The ultra-short ball valve product has the characteristics of compact structure, small size, light weight, easy installation, etc. The clamp ball valve can be widely used in petroleum, chemical industry, metallurgy, power station, light industry and other fields to automatically adjust or cut off the oil, water, gas and pulp or fibrous fluid.
Application of pinch ball valve products:
The pinch ball valve is also known as: ultra-short and Italian ultra-thin ball valve, the closing part of the ball around the valve body line for rotation to achieve the opening and closing of a valve, when the valve cavity medium pressure exceeds the spring preload force, the outlet end of the seat back from the ball, to achieve automatic pressure relief effect, pressure relief after the seat automatically reset, the pinch ball valve is suitable for water, solvent, acid and natural gas and other general working media. The ultra-short ball valve is also suitable for media with harsh working conditions, such as oxygen, hydrogen peroxide, methane and ethylene, etc., which is widely used in various industries.
Packing of Standard Packing:
